Scope of Work
- Mechanical design and fabrication of a 4-station index table with quick-disconnect nests and Dajac alignment.
- Electrical panel design and assembly, plus the pneumatic clamping system.
- PLC/HMI programming for manual and automatic sequencing.
- Safety light-curtain and e-stop integration.
Architecture

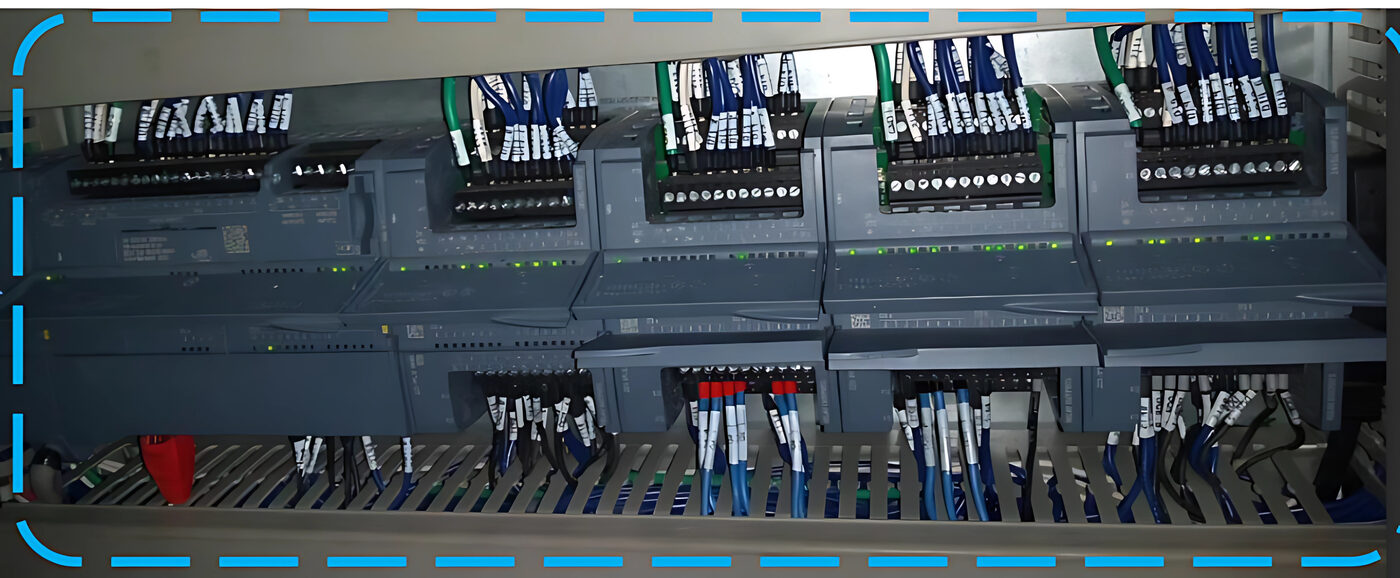

The 4-position indexing table carries two part nests per station. Each position aligns the headlamp via Dajac sensors before photometric measurement; the PLC drives indexing, clamping and safety interlocks, with dedicated HMI screens for process, manual, alarms and I/O.
Technology
- Siemens S7-1200, Simatic HMI
- Safety light curtain, e-stops
- Dajac alignment sensors, pneumatic clamping
