Scope of Work
- PTR structural frame with a vertical press mechanism.

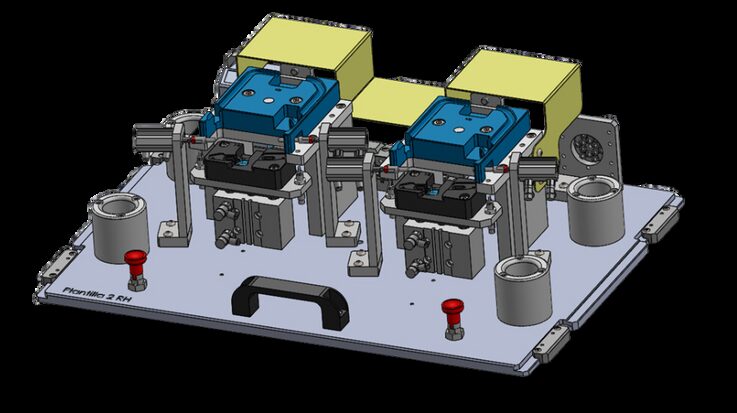

- Modular upper/lower tooling supporting multiple part variants.
- Acrylic guarding and pneumatic actuation.
- PLC/HMI programming for manual/automatic sequencing.
- Safety light curtains and e-stops.
Architecture
The press indexes interchangeable upper/lower tool sets to clip different part variants; the PLC monitors clip distance and pneumatic pressure every cycle and verifies OK/NOK before releasing the part.
Technology
- Siemens S7-1200
- Safety light curtains, pneumatic press actuators
- Modular, quick-change tooling
